Automatic Calendar/Paper/Notebook Hole Punching Machine for Single Loop or Double Loops Binding.

Basic Info.

Model NO.	CK-420
Power Source	Mechanical
Condition	NEW
Type	Automatic Hole Puncher
Hole Number	Multi Holes
Automatic Grade	Automatic
Computerized	Yes
Usage	Packing Paper Machine, Office Paper Machine
Process	Finishing Process Machine
Transport Package	Strong Export Wooden Case.
Specification	Export Standard
Trademark	Koten
Origin	China
Production Capacity	30set/Month

Product Description

Introduction.

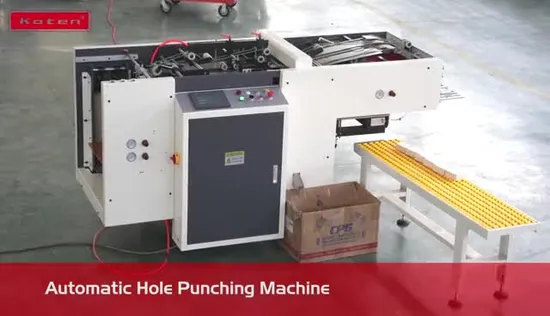

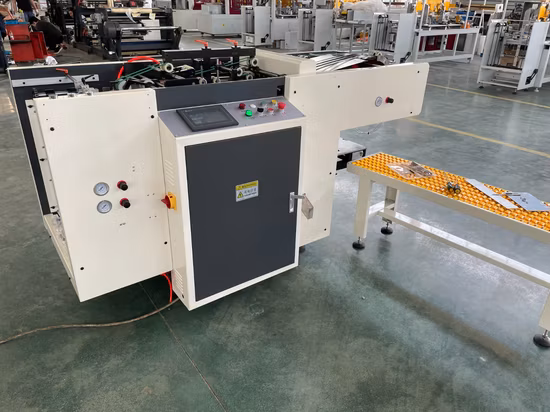

The machine is mainly used in the punching of account books, memorandum, calendars, cardboard, PP plate as well as other paper products. The paper distributing, transportation, hole-punching and paper-collecting can all be finished automatically. Only one person needed to fulfill the whole operation.
Samples.

Main Tachnical Parameters.

Model	CK-420
Max. Size	420x440mm
Min. Size	120x120mm
Max. punching thickness	2mm
Max. stack height	600mm
Paper suitable	60-200gsm
Speed	7200times/h.
Collection Style	Lift style and conveyer belt style for choose.
Power	3P 380V 50HZ
Machine size	2200x1000x1300mm
Machine weight	800kgs
Air compressor	0.37kw(4-6BAR)
